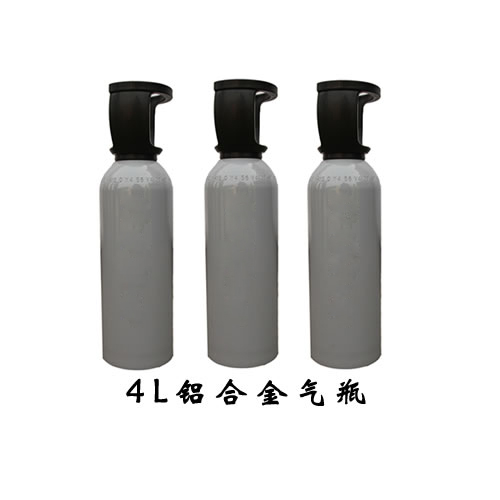

4L鋁合金氣瓶
4L鋁合金氣瓶
產(chǎn)品介紹
4L鋁合金氣瓶
技術參數(shù)
| 醫(yī)用氧氣瓶 (Medical Oxygen Cylinder) | |||||||||||||
|
品號 Part No. |
型號 Model |
外徑 Outside Diameter |
容積 Water Capacity |
壁厚 Wall Thickness |
工作壓力 Service Pressure |
重量 Weight |
高度 Length |
||||||
| mm | in | Lts | Cu in | mm | in | bar | psi | kgs | lbs | mm | in | ||
| MC1 | LWH89-0.5-15 | 89 | 3.5 | 0.5 | 30.5 | 4.5 | 0.2 | 150 | 2175.6 | 0.8 | 1.8 | 167 | 6.6 |
| MC2 | LWH89-0.7-15 | 89 | 3.5 | 0.7 | 42.7 | 4.5 | 0.2 | 150 | 2175.6 | 0.8 | 1.8 | 208 | 8.2 |
| MC3 | LWH89-1.0-15 | 89 | 3.5 | 1.0 | 61.0 | 4.5 | 0.2 | 150 | 2175.6 | 1.2 | 2.6 | 269 | 10.6 |
| MC4 | LWH89-1.4-15 | 89 | 3.5 | 1.4 | 85.4 | 4.5 | 0.2 | 150 | 2175.6 | 1.5 | 3.3 | 350 | 13.8 |
| MC5 | LWH108-2.0-15 | 108 | 4.3 | 2.0 | 122.0 | 5.5 | 0.2 | 150 | 2175.6 | 2.2 | 4.9 | 340 | 13.4 |
| MC6 | LWH120-2.8-15 | 120 | 4.7 | 2.8 | 170.9 | 6.1 | 0.2 | 150 | 2175.6 | 2.9 | 6.4 | 392 | 15.4 |
| MC7 | LWH120-3.2-15 | 120 | 4.7 | 3.2 | 195.3 | 6.1 | 0.2 | 150 | 2175.6 | 3.2 | 7.1 | 437 | 17.2 |
| MC8 | LWH140-4.0-15 | 140 | 5.5 | 4.0 | 244.1 | 7.1 | 0.3 | 150 | 2175.6 | 4.2 | 9.3 | 410 | 16.1 |
| MC9 | LWH140-6.3-15 | 140 | 5.5 | 6.3 | 384.5 | 7.1 | 0.3 | 150 | 2175.6 | 5.8 | 12.8 | 605 | 23.8 |
| MC10 | LWH140-8.0-15 | 140 | 5.5 | 8.0 | 488.2 | 7.1 | 0.3 | 150 | 2175.6 | 7.4 | 16.3 | 741 | 29.2 |
| MC11 | LWH159-10.0-15 | 159 | 6.3 | 10.0 | 610.2 | 8.0 | 0.3 | 150 | 2175.6 | 8.8 | 19.4 | 730 | 28.7 |
| MC12 | LWH180-10.0-15 | 180 | 7.1 | 10.0 | 610.2 | 9.1 | 0.4 | 150 | 2175.6 | 10.1 | 22.3 | 605 | 23.8 |
| MC13 | LWH203-12.0-15 | 203 | 8.0 | 12.0 | 732.3 | 10.3 | 0.4 | 150 | 2175.6 | 13.0 | 28.7 | 592 | 23.3 |
| MC14 | LWH203-20.0-15 | 203 | 8.0 | 20.0 | 1220.5 | 10.3 | 0.4 | 150 | 2175.6 | 17.0 | 37.5 | 900 | 35.4 |
| MC15 | LWH232-30.0-15 | 232 | 9.1 | 30.0 | 1830.7 | 11.7 | 0.5 | 150 | 2175.6 | 26.0 | 57.3 | 1008 | 39.7 |
| MC16 | LWH232-40.0-15 | 232 | 9.1 | 40.0 | 2441.0 | 11.7 | 0.5 | 150 | 2175.6 | 32.0 | 70.5 | 1300 | 51.2 |
| MC17 | LWH250-50.0-20 | 250 | 9.8 | 50.0 | 3051.2 | 16.7 | 0.7 | 200 | 2900.8 | 55.0 | 121.3 | 1500 | 59.1 |
| 美標氧氣瓶系列 (DOT Standard Medical Oxygen Cylinder) | |||||||||||||
| ML6 | LWH111-1.2-15 | 111 | 4.4 | 1.2 | 73.2 | 5.5 | 0.2 | 150 | 2175.6 | 1.4 | 3.1 | 225 | 8.9 |
| M9 | LWH111-1.7-15 | 111 | 4.4 | 1.7 | 103.7 | 5.5 | 0.2 | 150 | 2175.6 | 1.8 | 4.0 | 290 | 11.4 |
| MD | LWH111-2.9-15 | 111 | 4.4 | 2.9 | 177.0 | 5.5 | 0.2 | 150 | 2175.6 | 2.7 | 6.0 | 461 | 18.1 |
| ME | LWH111-4.6-15 | 111 | 4.4 | 4.6 | 280.7 | 5.5 | 0.2 | 150 | 2175.6 | 4.9 | 10.7 | 688 | 27.1 |
| M60 | LWH184-10.5-15 | 184 | 7.2 | 10.5 | 640.8 | 12.2 | 0.5 | 150 | 2175.6 | 13.4 | 29.5 | 630 | 24.8 |
| M90 | LWH184-15.7-15 | 184 | 7.2 | 15.7 | 958.1 | 12.2 | 0.5 | 150 | 2175.6 | 18.2 | 40.1 | 890 | 35.0 |
| MM | LWH203-21.4-15 | 203 | 8.0 | 21.4 | 1305.9 | 11.7 | 0.5 | 150 | 2175.6 | 18.0 | 39.7 | 954 | 37.6 |
